ADM007

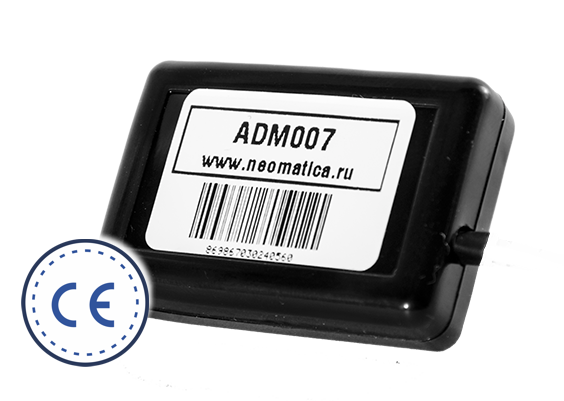

ADM007 gps tracker CE mark

ADM007 is the smallest Russian fleet tracker designed for objects with basic monitoring requirements, small objects, hidden installation. It saves traffic and power. ADM007 is capable to work with a wireless headset. In addition to traditional setting methods, it may be configured with a mobile phone via Bluetooth.



Benefits of ADM007:

  • Compact case with built-in GSM and GLONASS/GPS antennas;
  • Setting from smartphone via Bluetooth;
  • Recording data in the device memory and their further upload;
  • Analog input for ignition control;
  • Easy installation;
  • Remote updating of firmware version via GPRS;
  • Very low weight;
  • Jamming detection;
  • Open and flexible protocol supported by most telematics servers.
  • CE certificate

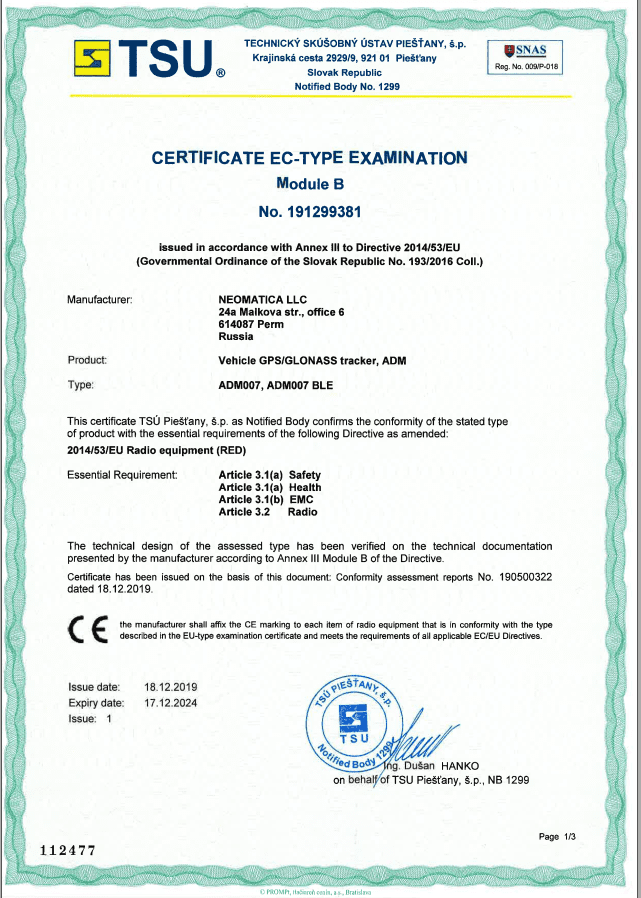

ADM007 CE Certificate


TECHNICAL CHARACTERISTICS OF ADM007

Number of channels of GLONASS/GPS receiver:

33 tracking/99 picking up

Communication standard:

2G

Number of SIM cards:

1microSIM

Analog input:

1

PC connection interface:

Bluetooth

Supply voltage:

+8,5..+45V

Current consumption (12V):

200mA (maximum), 30mA (average)

Operation temperature:

-40..+85 °C

Number of stored route records:

49000

Setting Handling:

 Bluetooth, SMS, GPRS, FOTA

Dimensions:

45х25х12 mm

Weight:

30 g


You can purchase a cigarette lighter adapter for ADM007. Write to our managers by email sales@neomatica.com

Downloads:

Manual
CE certificate
