ADM007 BLE

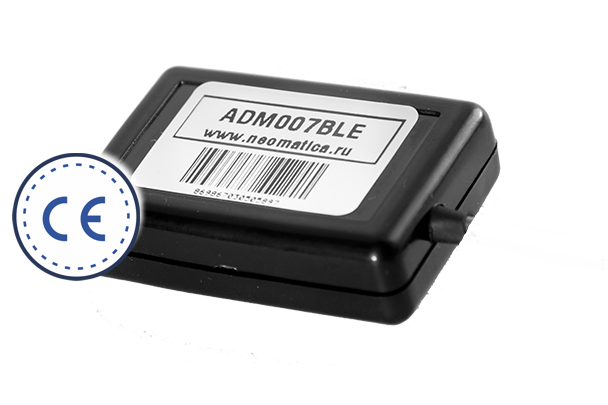

ADM007 BLE gps vehicle tracker

ADM007 BLE is the smallest Russian fleet tracker designed to replace conventional wired solutions. It greatly speeds up installation and increases opportunities. It saves traffic, power and may be configured with a mobile phone via Bluetooth.



Benefits of ADM007 BLE:

  • Compact case with built-in GSM and GLONASS/GPS antennas;
  • Setting from smartphone via Bluetooth;
  • Works with wireless BLE temperature, humidity, tilt sensors etc;
  • Recording data in the device memory and their further upload;
  • Analog input for ignition control;
  • Easy installation;
  • Remote updating of firmware version via GPRS;
  • Very low weight;
  • Jamming detection;
  • Open and flexible protocol supported by most telematics servers;
  • CE certificate

ADM007 BLE CE certificate



TECHNICAL CHARACTERISTICS OF ADM007 BLE

Number of channels of GLONASS/GPS receiver:

33 tracking/99 picking up

Communication standard:

2G

Number of SIM cards:

1 nanoSIM

Analog input:

1

PC connection interface:

Bluetooth

Communication interface with wireless sensors:

 Bluetooth 4.0 Low Energy

Supply voltage:

+8,5..+45V

Current consumption (12V):

200mA (maximum), 30mA (average)

Operation temperature:

-40..+85 °C

Number of stored route records:

63000

Setting Handling:

 Bluetooth, SMS, GPRS, FOTA

Dimensions:

45х25х12 mm

Weight:

30 g



As an addition to the standard power supply of the ADM007 BLE tracker from the on-board network, you can order a cigarette lighter. Feel free to contact our sales managers at sales@neomatica.com

Downloads:

Manual
CE certificate
