ADM333 BLE

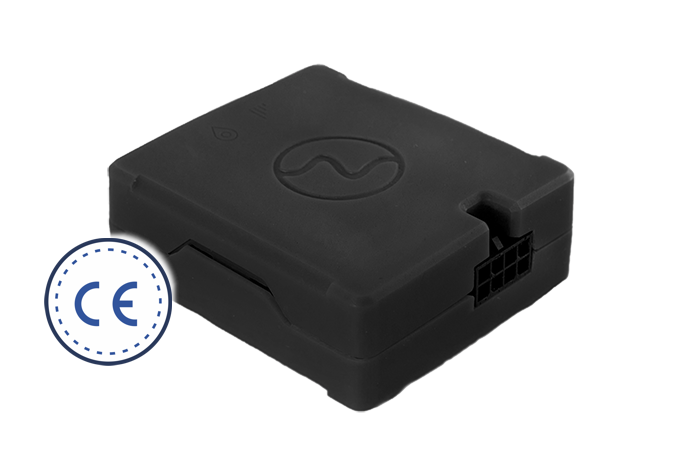

ADM333 BLE is a compact fleet tracker with built-in GSM and GLONASS/GPS antennas designed to replace conventional wired solutions. It greatly speeds up installation and increases opportunities. The tracker can work simultaneously with wireless sensors of temperature, humidity, light, magnetic field, fuel level or axle load.

Benefits of ADM333 BLE:

  • Connection of wireless fuel sensors;
  • Connection of wireless temperature sensors;
  • Compact case with built-in GSM and GLONASS/GPS antennas;ADM333 BLE gps vehicle tracker
  • Built-in battery;
  • Configuration via Bluetooth;
  • Remote firmware update;
  • Jamming detection;
  • Open and flexible protocol supported by most telematics servers.
  • CE certificate

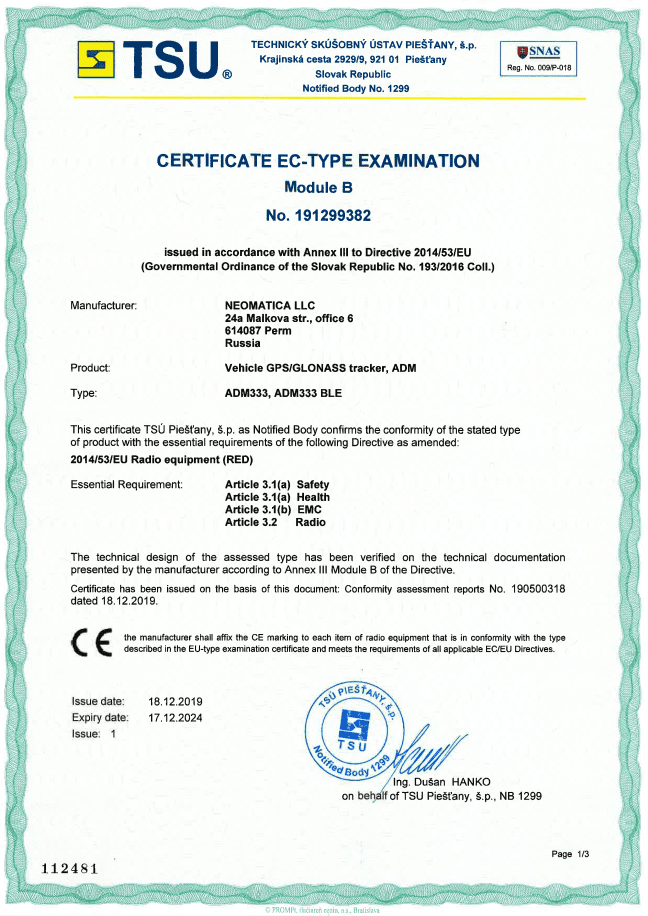

ADM333 BLE CE certificate


TECHNICAL CHARACTERISTICS OF ADM333 BLE

Number of channels of GLONASS/GPS receiver:

33 tracking/99 picking up

Communication standard:

2G

Number of SIM cards:

2 nanoSIM

Li-Po battery capacity:

250mA

Communication interface with wireless sensors:

Bluetooth 4.0 Low Energy

Analog inputs:

2

Output:

1

PC connection interface:

Bluetooth

Supply voltage:

+8,5..+45V

Current consumption (12V):

200mA (maximum), 30mA (average)

Operation temperature:

-40..+60 °C

Number of stored route records:

20000

Setting Handling:

 Bluetooth, SMS, GPRS, FOTA

Dimensions:

55х49х20 mm

Weight:

39 g



Downloads:

Manual
CE certificate
