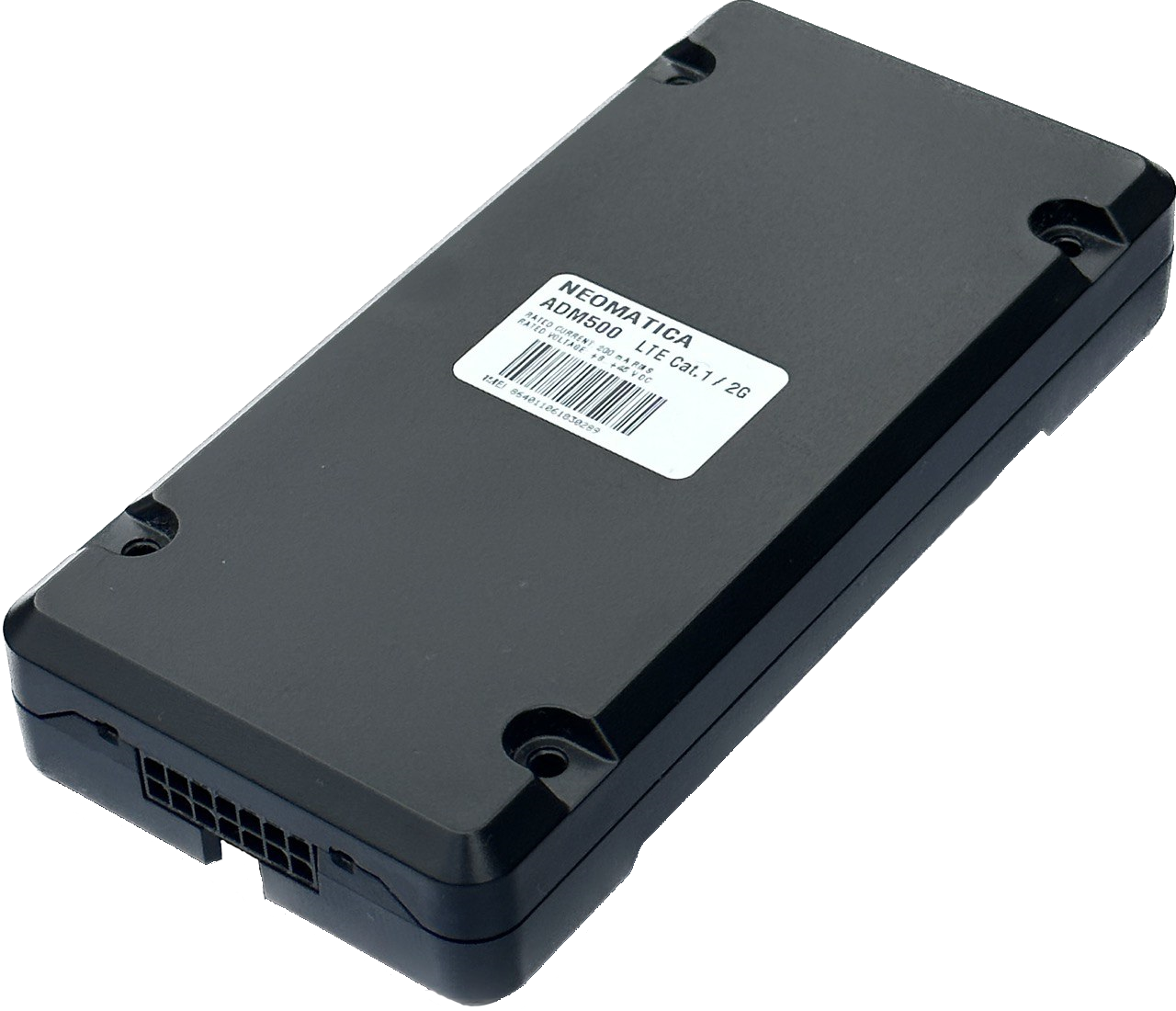

LTE tracker ADM500

LTE/2G tracker with wide options of wired interfaces and BLE connections. Perfect solution for basic and advanced fleet monitoring.

Benefits of ADM500:

  • Compact case ADM500 lte vehicle tracker
  • Low price
  • Built-in antennas
  • Built-in battery
  • Configuration via Bluetooth
  • 2 SIM cards
  • Connection of up to 5 wireless sensors ADM35, ADM35H and ADM32 and 4 fuel sensores
  • Driver identification
  • 1-Wire interface for temperature sensors/iButton connection
  • Remote firmware update (FOTA)
  • 2 Analogic and 2 digital inputs and outputs
  • Open and flexible protocol supported by most telematics servers



TECHNICAL CHARACTERISTICS OF ADM500

GLONASS/GPS receiver sensitivity:

-178dBm

Frequency bands:

LTE-FDD B1/B3/B5/B7/B8/B20
GSM/GPRS/EDGE 900/1800 MHz

Communication standard:

LTE Cat. 1/2G

Number of SIM cards:

2 SIM

Li-Po battery capacity:

1000 mAh

Communication interface with wireless sensors:

1-Wire

Analog inputs:

2

Output:

2

Power supply voltage:

+8,5..+45V

Current consumption (12V):

300mA (maximum), 40mA (average)

Operation temperature:

-40..+60 °C

Digital input:

2

Dimensions:

128x62x22 mm

Weight:

110 g



Downloads:

Manual
