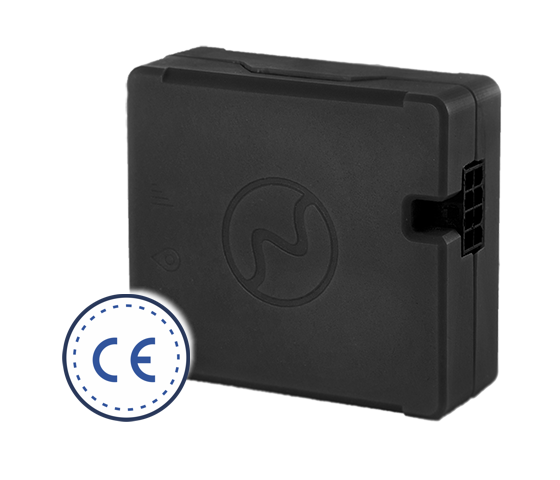

ADM333

ADM333 is a vehicle tracker in a compact case with built-in GSM and GLONASS/GPS antennas. It saves traffic, power and may be configured with a mobile phone via Bluetooth.

Benefits of ADM333:

  • Compact case with built-in GSM and GLONASS/GPS antennas;ADM333 gps vehicle tracker
  • Low price;
  • Built-in battery;
  • Configuration via Bluetooth;
  • connection of fuel sensors;
  • Driver identification;
  • connection of temperature sensors DS18B20;
  • Bluetooth headset connection;
  • Remote firmware update;
  • Jamming detection;
  • Open and flexible protocol supported by most telematics servers;
  • CE certificate

ADM333 CE certificate


TECHNICAL CHARACTERISTICS OF ADM333

Number of channels of GLONASS/GPS receiver:

33 tracking/99 picking up

Communication standard:

2G

Number of SIM cards:

2 nanoSIM

Li-Po battery capacity:

250mA

Interfaces:

RS-485, 1-wire

Analog inputs:

2

Output:

1

PC connection interface:

Bluetooth

Supply voltage:

+8,5..+45V

Current consumption (12V):

200mA (maximum), 30mA (average)

Operation temperature:

-40..+60 °C

Number of stored route records:

30000

Setting Handling:

 Bluetooth, SMS, GPRS, FOTA

Dimensions:

55х49х20 mm

Weight:

39 g



Downloads:

Manual
CE certificate
