using the ADM P50 tracker and BLE tags
.png)
Imagine a situation where you need to navigate inside a building with thick concrete walls, where a regular GPS is powerless.
How to know where the employee, equipment or cargo is now? How to quickly determine which warehouse, hall or office the object is in?
Answer: internal navigation based on mobile trackers and fixed BLE tags
Learn more about this system:
1 Why is this necessary?
Real-time staff control — you know who is in the building and where.
Compliance with tasks and deadlines — the system records entries/exits and movement between zones.
Business process optimization — labor is becoming more expensive, and it is important to increase efficiency
through transparency
.png)
marks on the server
|
room
|
entry time
|
exit time
|
duration
|
total time
|
time between
|
visits
|
|
office 9
|
14.08.24
0:00:27
|
14.08.24
10:51:18
|
10:51:18
|
12:06:46
|
-
|
2
|
|
reception
|
14.08.24
10:51:18
|
14.08.24
12:06:44
|
01:15:26
|
01:15:26
|
-
|
1
|
|
office 9
|
14.08.24
12:06:44
|
14.08.24
12:07:13
|
00:00:29
|
12:06:46
|
-
|
2
|
|
office 7
|
14.08.24
12:07:13
|
14.08.24
12:49:32
|
00:42:19
|
03:25:33
|
-
|
3
|
|
office 7
|
14.08.24
12:57:33
|
14.08.24
13:39:33
|
00:42:00
|
03:25:33
|
00:08:21
|
3
|
|
office 7
|
14.08.24
13:41:33
|
14.08.24
15:32:46
|
01:51:13
|
03:25:33
|
00:02:00
|
3
|
|
office 7а
|
14.08.24
15:32:46
|
14.08.24
16:35:30
|
10:51:18
|
01:02:44
|
-
|
1
|
|
|
|
|
16:25:02
|
1 day 12:48:21
|
|
|
2 How it works
1. BLE-tags are small devices on the walls (one tag=one room),
in each room there is a tag

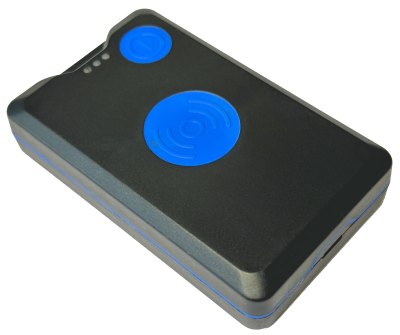

2. ADM P50 is a tracker that is worn by an employee or attached to an object.
It receives signals fr om the tags, determines its location
and sends data to the server.
3. Server and software - the system uses the tag numbers to determine which room
the object is in (for example, using Axenta or Wialon software)
personal tracker bluetooth-tag

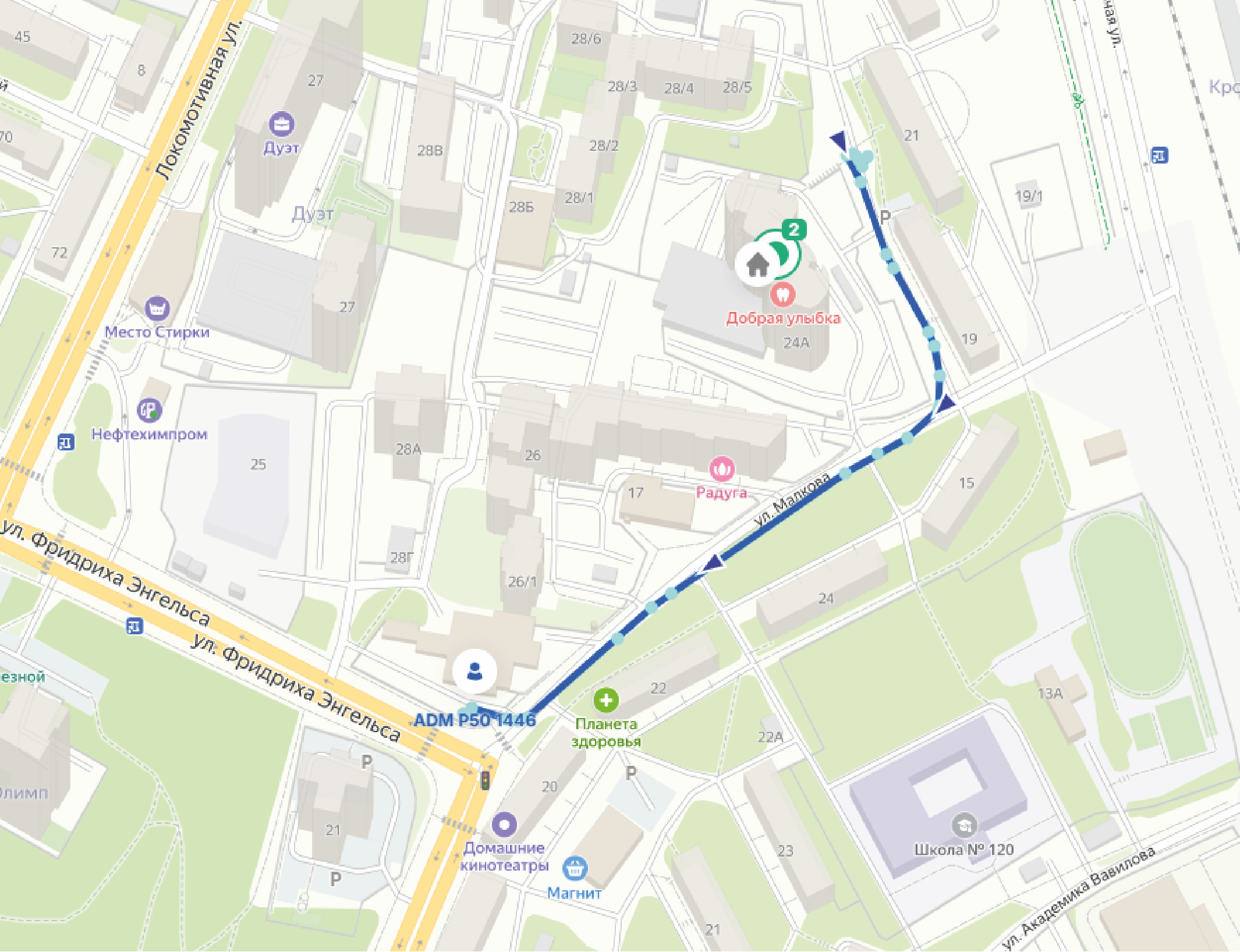

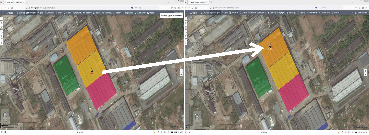

3 On the street, the ADM P50 tracker transmits coordinates determined by satellites;
inside the room, it transmits the id of the tag it is near.
The program uses a reference book to determine which room the tracker is in.
As a result, the route remains continuous, and you can see the entire track:
how much time the employee spent outside and inside the rooms, when they entered and exited.
.png)

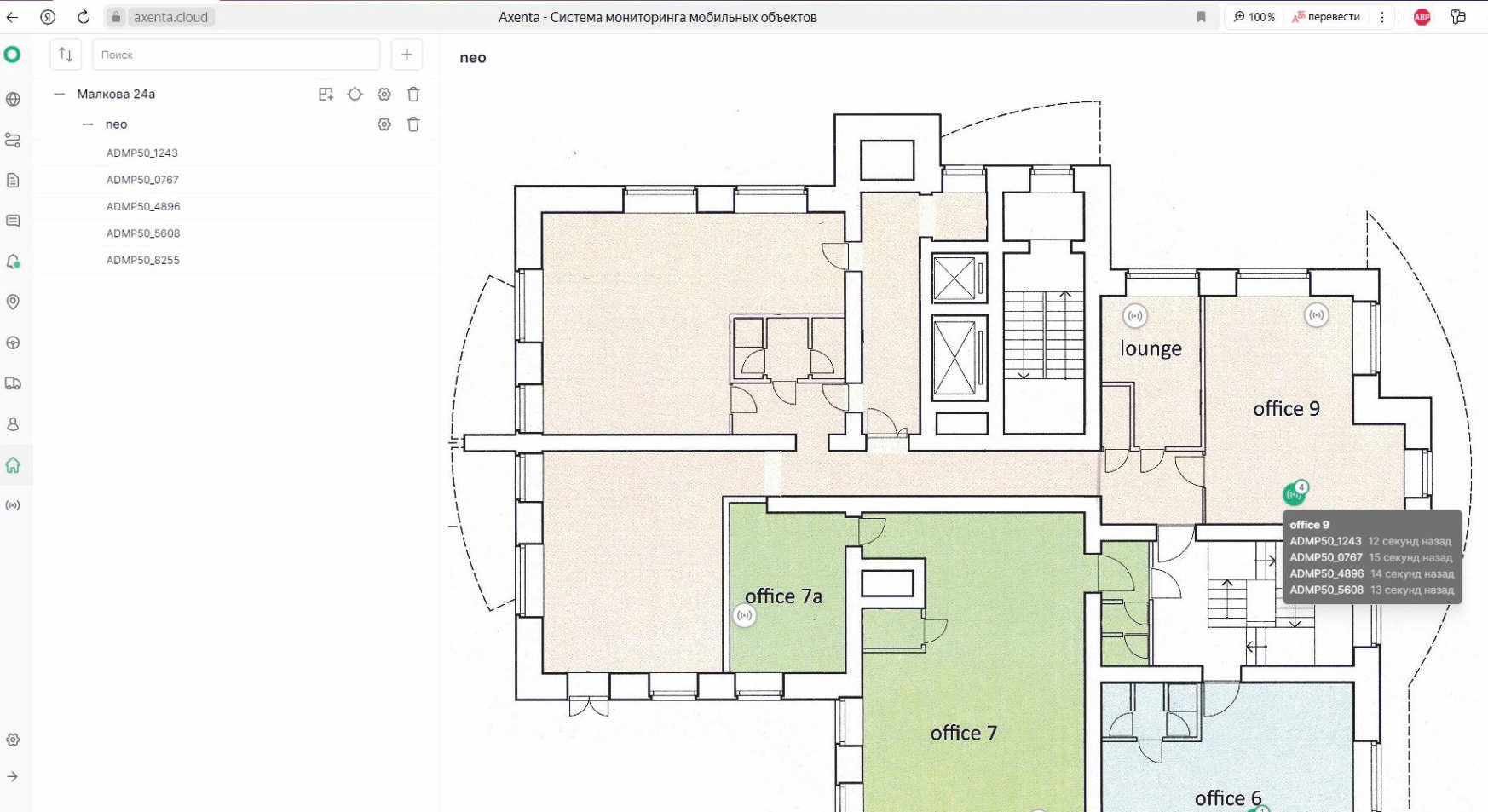

server software
4 What is required to run
Equipment: ADM P50 trackers + BLE tags
Technologies: Bluetooth (for indoor), GPS/GLONASS (for outdoor), cellular communication (data transfer)
Software: monitoring system and room map.

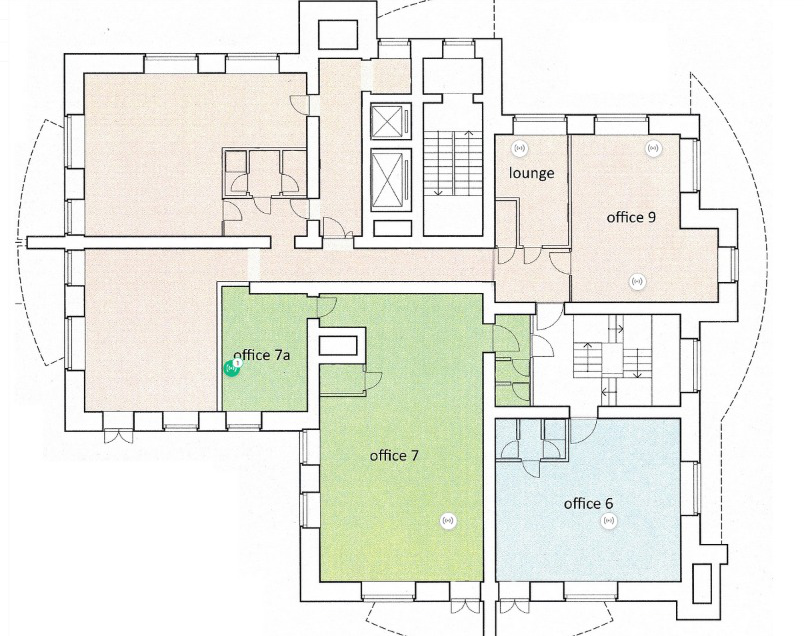

Preparation: tag placement scheme, installation, calibration, and staff training.
Room equipment tracker + tag installation: one person can equip a 10-20 room facility in a day
.png)
5 What do you get
Full control of indoor and outdoor movements.
Automatic reports: wh ere, when, and for how long a person or object was present.
The ability to optimize routes and increase throughput.
Minimal costs: all of this is achieved using the ADM P50, which combines outdoor and indoor navigation in a single device.
.png)
6 ADM P50 in conjunction with BLE-tags allows you to use any monitoring system.
This means that you are not tied to a specific software.
Choose a convenient software and get accurate reports on indoor and outdoor movements.
